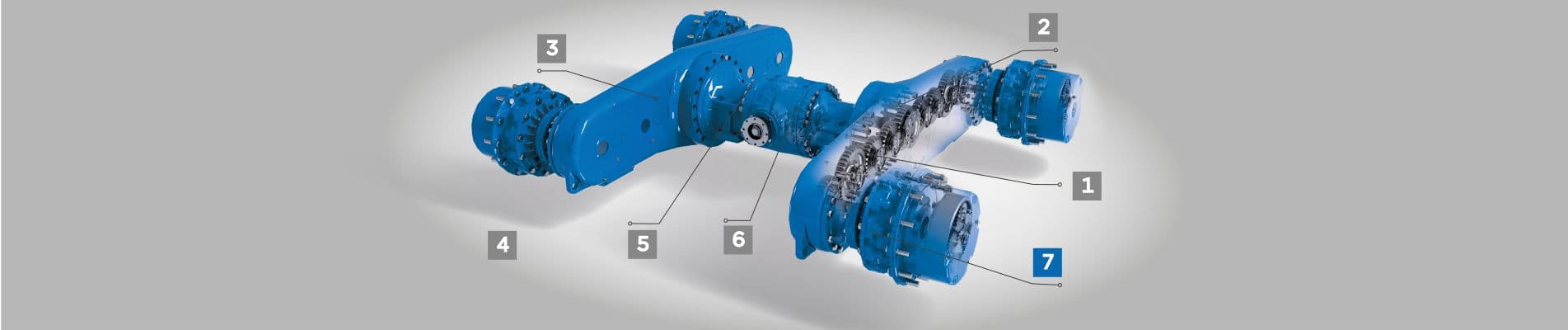

SEE THE HIGHLIGHTS OF OUR BOGIE AXLES
 |
X

Spur gear drive for maximum service life and minimum maintenance requirements in comparison to chain drives

Zahnrad Bogie NAF Axles

Patented solution for optimum traction and load distribution in all conditions

PBBS NAF Axles

Sophisticated casting technology saves weight and therefore fuel

Gusskonstruktion NAF Axles

Planetary drive and portal stage integrated into the wheel rim: more ground clearance, wide ratio range

Portalstufe Bogieachse NAF Axles

Wide range of differential locks for the best traction in all applications

A – MDDL
B – NoSpin
C – Dog Clutch
D – Limited Slip

Difflock MDDL NAF AxlesDifflock NoSpin NAF AxlesDifflock Klauenkupplung NAF AxlesDifflock Limited Slip NAF Axles

Low-wear braking system located next to the differential for the service and parking brake

Zweikreis-Bremssystem Bogieachse NAF Axles

Outstanding braking efficiency with integrated oil-immersed disc brake in planetary drive.

No external cooling is required for this brake solution

Turbobremse NAF Axles
NAF contact person

For your
heavy duty playgrounds

Peter Illig NAF 车桥厂

We are more than happy to develop individual drive solutions for you.

One of your NAF contacts

Peter Illig

Head of Sales and Marketing

Your product inquiry

REQUEST NOW

BOGIE AXLES

NAF bogie axles, also known as tandem axles, master the most extreme operating conditions in heavy-duty vehicles in agriculture, construction and forestry. Especially for off-road machines, this 4-wheel axle ensures optimum load distribution and traction for the machine.

This NAF bogie axle is available in various sizes and shapes and covers axle loads from 10 to 50 tons. Through the patented Permanent Bogie Balancing System (PBBS®), NAF has created a solution for optimised traction and load distribution in any driving situation. Customers worldwide rely on NAF’s decades of experience – THE world market leader for bogie axles. With NAF’s wide-ranging modular system, bogie axles can be customised in a large variance for the respective vehicle.

E-DRIVE FOR BOGIE AXLES

NAF axles can be driven either by a drive shaft or by a directly mounted hydro motor or electric motor. This also applies to semi-bogies in the dissolved design.

spare parts supply

Thanks to a long-standing spare parts supply, NAF customers can obtain spare parts such as cylinders, thrust washers or bearings from NAF to keep the axles in their tractor units in good condition for a long time.

BOGIE AXLES TAP 54

This bogie axle in the classic design with extended ground clearance at the differential was specially developed for forestry machines and vehicles for heavy transport off-road and is now also used in agricultural machines.

Bogie axle TAP54 from NAF axle factory
Highlights

Planetary bogie axle

Axle load of up to 14 t at 40 km/h

Optimised ground clearance

Optional use of rigid/bogie axles thanks to standardised axle attachment for 6/8-wheel machines

TECHNICAL SPECIFICATIONS

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF-Axles contact

Modular-Axles Design TAP 54

TRACTION CONTROL
  • Differential lock
  • Permanent Bogie Balancing System (PBBS®)
BRAKE SYSTEM
  • Closed oil immersed disc brake system (turbo brake)
  • Closed oil immersed disc brake system (parking brake)
  • Closed oil immersed disc brake system (service brake)
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)
  • Differential gear
  • Planetary gear drive (with/without brake)
  • Planetary gear drive (shiftable)
AXLE HOUSING
  • Axle housing (fixed)
  • Bogie housing
  • Bogie housing (flat, high speed)
  • Bogie housing (high, offroad)

BOGIE AXLES PTA 44

This portal bogie axle, with its optimised ground clearance due to the additional portal stage, is perfectly matched to the requirements in forestry machines.

Bogie axle PTA44 from NAF axle factory
Highlights

Portal bogie axle

For forestry machines

Axle load of up to 12 t at 30 km/h

Optimised ground clearance

Optional use of rigid/bogie axles thanks to standardised axle attachment for 6/8-wheel machines

TECHNICAL SPECIFICATIONS

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF-Axles contact

Modular-Axles Design PTA 44

TRACTION CONTROL
  • Differential lock
  • Permanent Bogie Balancing System (PBBS®)
BRAKE SYSTEM
  • Closed oil immersed disc brake system (turbo brake)
  • Closed oil immersed disc brake system (parking brake)
  • Closed oil immersed disc brake system (service brake)
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)
  • Differential gear
  • Planetary gear drive (with/without brake)
  • Planetary gear drive (shiftable)
AXLE HOUSING
  • Axle housing (fixed)
  • Bogie housing
  • Bogie housing (high, offroad)

BOGIE AXLES TAP 89

This planetary bogie axle with flat axle beam was designed for heavy loads and high speeds and is therefore perfectly suited for use in construction machines as well as mining machines such as motor graders and dump trucks. At 60 km/h, it can handle an axle load of up to 50 tonnes.

Bogie axle TAP89 from NAF axle factory
Highlights

Planetary bogie axle

Axle load of 50 t at 60 km/h

For high speeds

TECHNICAL SPECIFICATIONS

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF-Axles contact

Modular-Axles Design TAP 89

TRACTION CONTROL
  • Differential lock
  • Permanent Bogie Balancing System (PBBS®)
BRAKE SYSTEM
  • Closed oil immersed disc brake system (turbo brake)
  • Closed oil immersed disc brake system (parking brake)
  • Closed oil immersed disc brake system (service brake)
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)
  • Differential gear
  • Planetary gear drive (with/without brake)
  • Planetary gear drive (shiftable)
AXLE HOUSING
  • Axle housing (fixed)
  • Bogie housing
  • Bogie housing (flat, high speed)
  • Bogie housing (high, offroad)

BOGIE AXLES PTA 87

The largest planetary portal bogie axle combines all the advantages for use in forestry machines and vehicles for heavy transport off-road.

Bogie axle PTA87 from NAF axle factory
Highlights

Planetary portal bogie axle

Axle load of up to 28 t at 40 km/h

Optimised ground clearance

Optional use of rigid/bogie axles thanks to standardised axle attachment for 6/8-wheel machines

TECHNICAL SPECIFICATIONS

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF-Axles contact

Modular-Axles Design PTA 87

TRACTION CONTROL
  • Differential lock
  • Permanent Bogie Balancing System (PBBS®)
BRAKE SYSTEM
  • Closed oil immersed disc brake system (turbo brake)
  • Closed oil immersed disc brake system (parking brake)
  • Closed oil immersed disc brake system (service brake)
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)
  • Differential gear
  • Planetary gear drive (with/without brake)
AXLE HOUSING
  • Portal bogie housing
  • Axle housing (fixed)
  • Bogie housing (high, offroad)

NAF’s leading drive solutions for the best possible traction and optimised driving stability on challenging terrain.

Produktbroschüre Bogieachse NAF Axles
