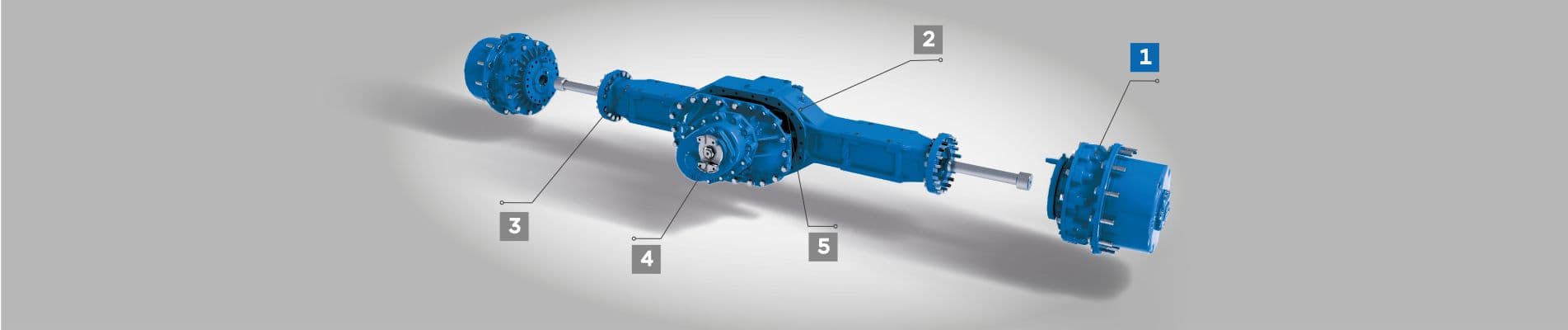

SEE THE HIGHLIGHTS OF OUR RIGID AXLES
 |
X

Outstanding braking efficiency with integrated oil-immersed disc brake in planetary drive.

No external cooling is required for this brake solution

Turbobremse NAF Axles

Modular solution, integrated into the axle, maintenance-friendly

Parkbremse NAF Axles

Sophisticated casting technology saves weight and therefore fuel

Gusskonstruktion NAF Axles

Direct drive solutions save weight and increase your flexibility if space is limited

Direkter Anbau NAF Axles

Wide range of differential locks for the best traction in all applications

A – MDDL
B – NoSpin
C – Dog Clutch
D – Limited Slip

Difflock MDDL NAF AxlesDifflock NoSpin NAF AxlesDifflock Klauenkupplung NAF AxlesDifflock Limited Slip NAF Axles
NAF contact person

For your heavy duty playgrounds

Till Kieser NAF Axle factory

We are more than happy to develop individual drive solutions for you.

One of your NAF contacts

Till Kieser

Senior Sales & Business Development Manager

Your product inquiry

REQUEST NOW

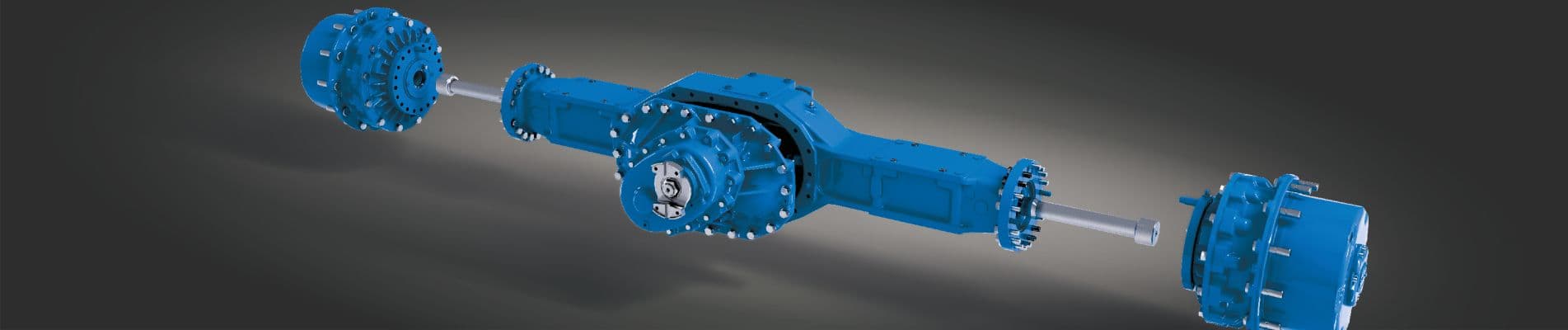

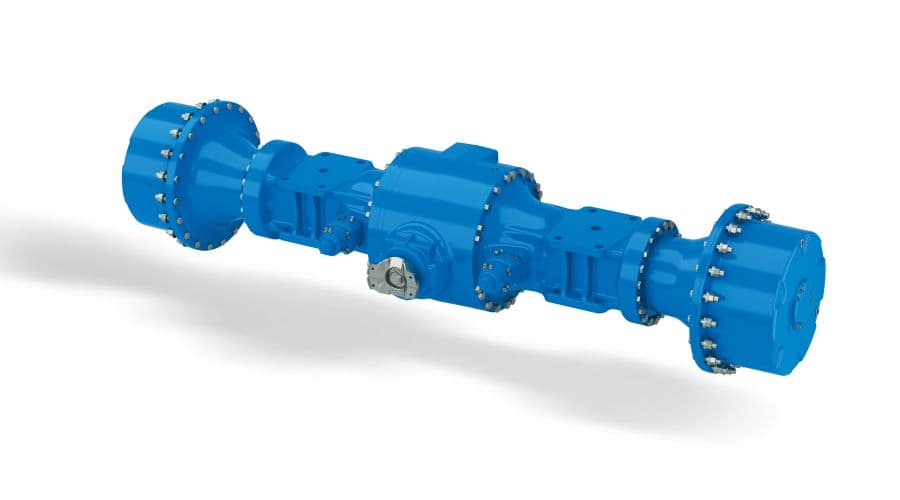

RIGID AXLES

The rigid axles from NAF offer an ideal complement to our steering axles, both as drive axles and as trailing axles. With a static axle load of up to 65 tonnes, the axles are designed for use in heavy commercial vehicles.
With the extensive NAF modular system, rigid axles can be customised for the respective vehicle in a wide range of variants.

E-DRIVE FOR RIGID AXLES

NAF axles can be driven either by a drive shaft or by a directly mounted hydro motor or electric motor.

spare parts supply

Thanks to a long-standing spare parts supply, NAF customers can obtain spare parts such as cylinders, thrust washers or bearings from NAF to keep the axles in their tractor units in good condition for a long time.

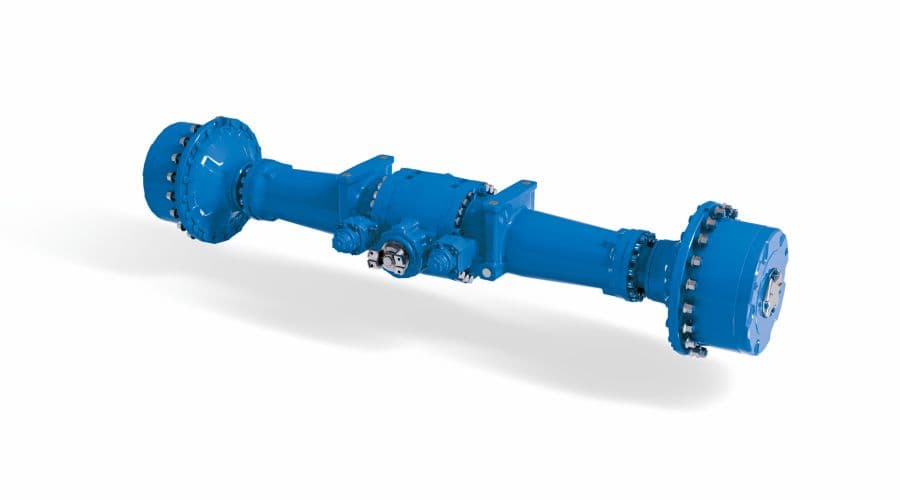

Rigid axle SAP 87

The SAP 87 is designed for the robust working conditions to which forestry machines are exposed.

Rigid axles SAP 86 NAF Axle factory
Highlights
  • Planetary rigid axle
  • Axle load of 20 t at 30 km/h

TECHNICAL SPECIFICATIONS

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF-Axles contact

Modular-Axles Design SAP 87

TRACTION CONTROL
  • Differential lock
BRAKE SYSTEM
  • Closed oil immersed disc brake system (turbo brake)
  • Closed oil immersed disc brake system (parking brake)
  • Closed oil immersed disc brake system (service brake)
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)
  • Differential gear
  • Planetary gear drive (with/without brake)
  • Planetary gear drive (shiftable)
AXLE HOUSING
  • Axle housing (fixed)
  • Suspension (oscillated)
  • Suspension (pendulum arms)

Rigid axle SAP 76

This rigid axle is constructed for higher speeds and is used, for example, in construction machines.

Rigid axles SAP 76 NAF Axle factory
Highlights
  • Planetary rigid axle
  • Axle load of 25 t at 52 km/h
  • Integrated drive through shaft

TECHNICAL SPECIFICATIONS

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF-Axles contact

Modular-Axles Design SAP 76

TRACTION CONTROL
  • Differential lock
BRAKE SYSTEM
  • Closed oil immersed disc brake system (turbo brake)
  • Closed oil immersed disc brake system (parking brake)
  • Closed oil immersed disc brake system (service brake)
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)
  • Differential gear
  • Planetary gear drive (with/without brake)
  • Planetary gear drive (shiftable)
AXLE HOUSING
  • Axle housing (fixed)
  • Suspension (pendulum arms)

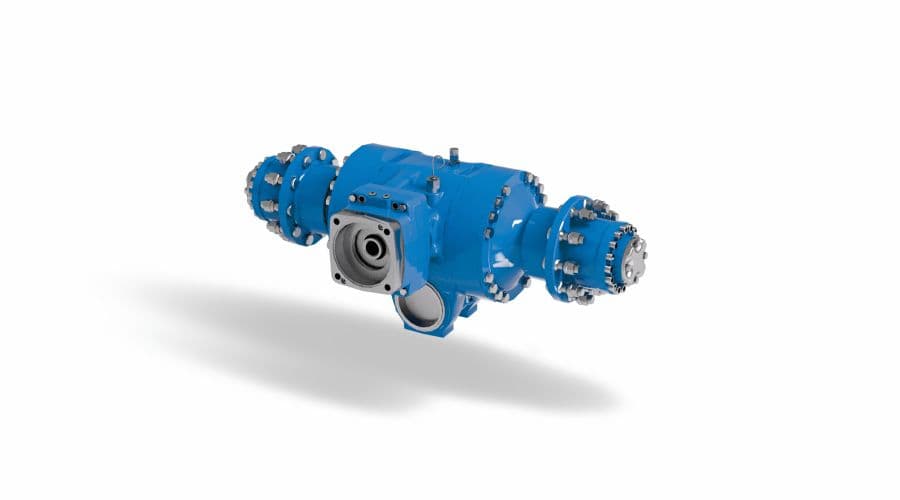

Rigid axle SAP 34

The SAP 34 is designed for high axle loads of up to 26 tonnes and is ideal for use in vehicles for material handling, predominantly mobile harbor cranes.

Rigid axles SAP 111 NAF Axle factory
Highlights
  • Planetary rigid axle
  • Axle load of 26/42/68 t at 5 km/h
  • Hydraulic motor direct drive/electric drive
  • Optionally not driven

TECHNICAL SPECIFICATIONS

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF-Axles contact

Modular-Axles Design SAP 34

TRACTION CONTROL
  • Differential lock
BRAKE SYSTEM
  • Closed oil immersed disc brake system (parking brake)
  • Closed oil immersed disc brake system (service brake)
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)
  • Differential gear
  • Planetary gear drive (with/without brake)
AXLE HOUSING
  • Axle housing (fixed)
  • Suspension (oscillated)
  • Suspension (pendulum arms)

Rigid axle SAP 55

Especially in vehicles for material handling and mining machines, the components are exposed to high wheel loads. The optimal areas of application for this rigid axle.

Rigid axles SAP 54 NAF Axle factory
Highlights
  • Planetary steering axle
  • Axle load of 14 t at 25 km/h
  • High wheel loads

TECHNICAL SPECIFICATIONS

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF-Axles contact

Modular-Axles Design SAP 55

TRACTION CONTROL
  • Differential lock
BRAKE SYSTEM
  • Closed oil immersed disc brake system (turbo brake)
  • Closed oil immersed disc brake system (service brake)
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)
  • Differential gear
  • Planetary gear drive (with/without brake)
  • Planetary gear drive (shiftable)
AXLE HOUSING
  • Axle housing (fixed)
  • Suspension (pendulum arms)

Rigid axle SAP 75 – 01

This rigid axle for forestry machines defies the harsh operating conditions in this industry.

Rigid axles SAP 75 - 01 NAF Axle factory
Highlights
  • Planetary rigid axle
  • Forestry machines
  • Axle load of 8 t at 35 km/h
  • Optional rigid/bogie axles using standardised attachment for 6/8-wheel machines

TECHNICAL SPECIFICATIONS

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF-Axles contact

Modular-Axles Design SAP 75 – 01

TRACTION CONTROL
  • Differential lock
BRAKE SYSTEM
  • Closed oil immersed disc brake system (parking brake)
  • Closed oil immersed disc brake system (service brake)
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)
  • Differential gear
  • Planetary gear drive (with/without brake)
AXLE HOUSING
  • Axle housing (fixed)
  • Suspension (oscillated)
  • Suspension (pendulum arms)

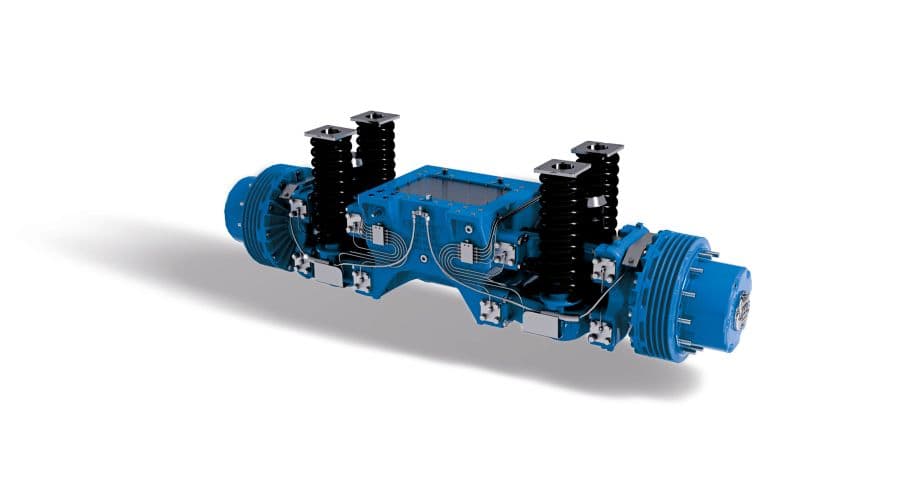

Starrachse SAF 76

The SAF 76 features integrated suspension and is primarily used as a front axle in construction machines.

Rigid axles SAF 76 NAF Axle factory
Highlights
  • Planetary rigid axle
  • Axle load of 17 t at 55 km/h
  • For high speeds
  • Integrated suspension

TECHNICAL SPECIFICATIONS

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF-Axles contact

Modular-Axles Design SAF 76

TRACTION CONTROL
  • Differential lock
BRAKE SYSTEM
  • Closed oil immersed disc brake system (turbo brake)
  • Parking brake (SAHR disc brake)
GEARBOX
  • Differential gear
  • Planetary gear drive (with/without brake)
  • Planetary gear drive (shiftable)
AXLE HOUSING
  • Suspension (fixed)

Rigid axle SAP 75 – 02

This rigid axle with oscillating or fixed suspension was specially developed for vehicles for material handling (RTG’s) with a load capacity of 42 or 67 tonnes.

Rigid axles SAP 75 - 02 NAF Axle factory
Highlights
  • Planetary rigid axle
  • Axle load of 42 t at 5 km/h
  • Hydraulic motor direct drive/electric drive
  • Optionally not driven
  • Compact design with attached transfer case

TECHNICAL SPECIFICATIONS

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF-Axles contact

Modular-Axles Design SAP 75 – 02

TRACTION CONTROL
  • Differential lock
BRAKE SYSTEM
  • Closed oil immersed disc brake system (parking brake)
  • Closed oil immersed disc brake system (service brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)
  • Differential gear
  • Planetary gear drive (with/without brake)
AXLE HOUSING
  • Axle housing (fixed)
  • Suspension (oscillated)
  • Suspension (pendulum arms)

Product brochure

NAF’s drive solutions for customised, modular rigid axles

Broschüre Lenk- & Starrachse NAF Axles
