Lenkachse NAF Neunkirchener Achsenfabrik

FOR YOUR
HEAVY DUTY
PLAYGROUNDS

NAF’s drive solutions for customised, modular steering axles

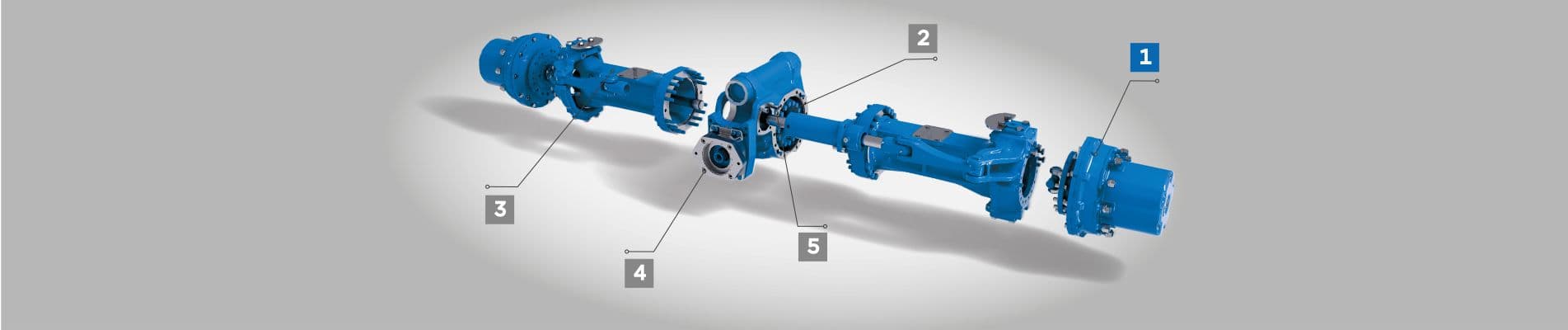

Lenkachse Turbo-Bremse NAF Neunkirchener Achsenfabrik

Patented, self-cooling turbo-break

Lenkachse Parkbremse NAF Neunkirchener Achsenfabrik

Parking brake

Lenkachse Gusskonstruktion NAF Neunkirchener Achsenfabrik

Cast design

Lenkachsen Direkter Anbau NAF Neunkirchener Achsenfabrik

Direct attachment of hydraulic or electric motors with and without transmission ratios

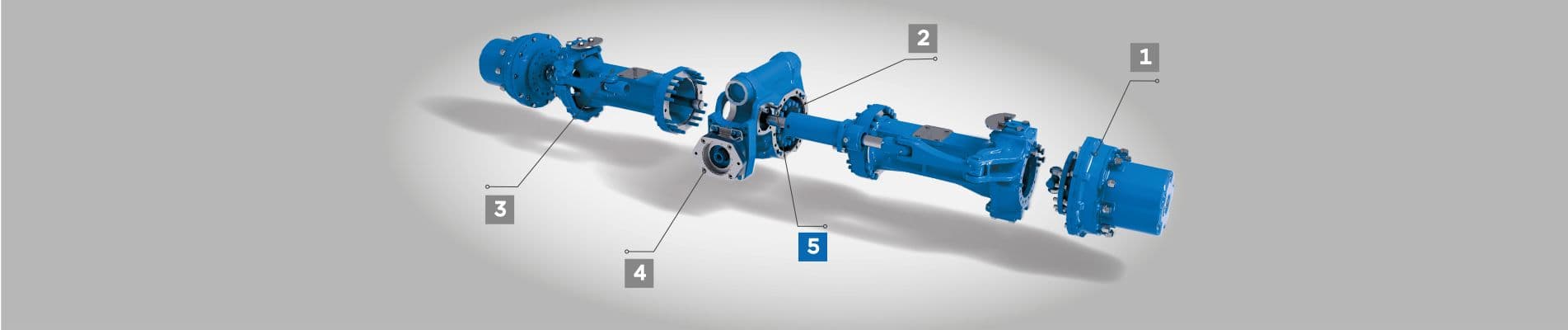

Lenkachsen Differentialsperre NAF Neunkirchener Achsenfabrik

Differential locks

SEE THE HIGHLIGHTS OF OUR STEERING AXLES

.slider-section .box-wrapper.hidden, .slider-section .box-wrapper .box-content.hidden, .slider-section .owl-carousel {display:block !important;} .slider-section .owl-pagination, .slider-section .owl-control, .slider-section .box-wrapper .close-button, .slider-section .box-wrapper:before { display:none !important; } .slider-section .owl-carousel .slide {overflow:hidden;} .slider-section .box-wrapper {position:relative !important;} .slider-section .box-wrapper .box-content {margin: 25px auto !important;}

NAF contact person

For your heavy duty playgrounds

Sebastian Reck - NAF Neunkirchener Achsenfabrik

We are more than happy to develop individual drive solutions for you.

One of your NAF contacts

Sebastian Reck

Key Account Manager

Your product inquiry

REQUEST NOW

section.contact-person .contact-data .download-area p {display:none!important;} section.contact-person {top:0 !important;} @media(min-width:1320px) { section.contact-person .desktop-opener {right:-50px !important;} section.contact-person .contact-data.closed {right:0 !important;} section.contact-person .contact-data .toggle-area {display:none !important;} } @media(max-width:1319px) { section.contact-person {display: initial !important;} section.contact-person .desktop-opener {display:none !important;} section.contact-person {position: relative !important;} section.contact-person .contact-data.closed { position: relative; top: initial !important; left: initial !important; right: initial !important; bottom: initial !important; width: 80%; max-width: 300px; margin: 0 auto; height: auto; margin-bottom: 50px; } section.contact-person .contact-data .toggle-area {display:none !important;} }

STEERING AXLES

FlexTrac Axle® LAP 44

The FlexTrac Axle® is primarily used in agricultural machines. “FlexTrac” stands for a telescopic planetary steering axle that can be used for different tyre widths, tyre sizes and applications.

Axle load of 12 t at 40 km/h, Adjustable track width, Directly driven hydraulic motor, Integrated spur gearing, Compact design

Lenkachse LAP 44 Flextrac Axle- Neunkirchener Achsenfabrik

TECHNICAL SPECIFICATIONS

TRACTION CONTROL

Differential lock

BRAKE SYSTEM

Closed oil immersed disc brake system (parking brake)
Closed oil immersed disc brake system (service brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)
Differential gear
Planetary gear drive (with/without brake)
Planetary gear drive (shiftable)

AXLE HOUSING

Axle housing (fixed)
Axle housing (adjustable)
Suspension (oscillated)
Suspension (pendulum arms)

.acc-block .acc-box .content { font-size: 18pt; line-height: 26pt; opacity: 1 !important; visibility: visible !important; max-height: inherit !important; } .acc-block .acc-box .content-area { padding-bottom: 20px !important; padding-top: 20px !important; } .acc-block .acc-box .title::before { border-style: solid !important; border-width: 12px 12px 0 12px !important; border-color: #fff transparent transparent transparent !important; top: 10px !important; left: -10px !important; }

Steering axle LAP 44

Due to its compact construction, this axle is ideally designed for use in agricultural machines.

Axle load of 8.5 t at 40 km/h, Direct hydraulic motor drive, Integrated spur gearing, Compact design, Integrated attached transfer case

Lenkachse LAP 44 - Neunkirchener Achsenfabrik

TECHNICAL SPECIFICATIONS

TRACTION CONTROL

Differential lock
All-wheel shutdown

BRAKE SYSTEM

Closed oil immersed disc brake system (turbo brake)
Closed oil immersed disc brake system (parking brake)
Closed oil immersed disc brake system (service brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)
Differential gear
Planetary gear drive (with/without brake)

AXLE HOUSING

Axle housing (fixed)
Suspension (oscillated)
Suspension (pendulum arms)

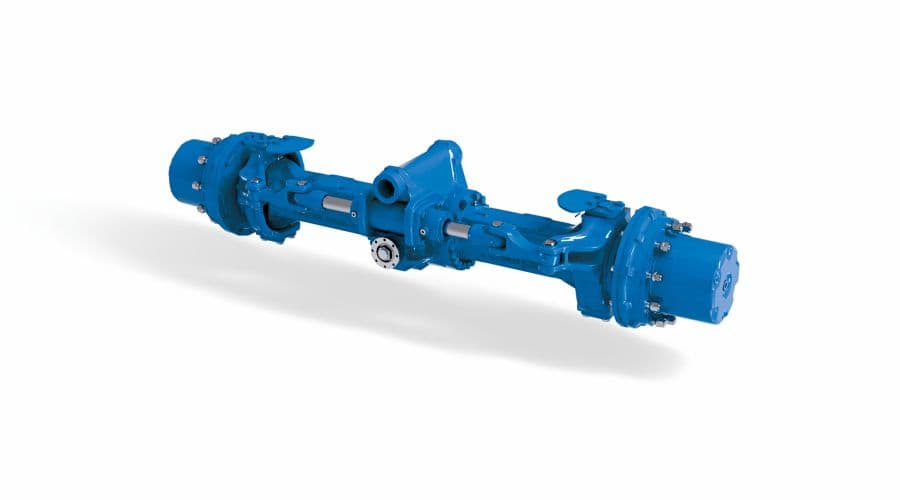

Steering axle LAP 54

This planetary steering axle is used in construction machines and airfield vehicles (GSE).

Axle load of 14 t at 25 km/h, High wheel loads

Lenkachse LAP 54 - Neunkirchener Achsenfabrik

TECHNICAL SPECIFICATIONS

TRACTION CONTROL

Differential lock

BRAKE SYSTEM

Closed oil immersed disc brake system (turbo brake)
Closed oil immersed disc brake system (parking brake)
Closed oil immersed disc brake system (service brake)
Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)
Differential gear
Planetary gear drive (with/without brake)
Planetary gear drive (shiftable)

AXLE HOUSING

Axle housing (fixed)
Axle housing (adjustable)
Suspension (oscillated)
Suspension (pendulum arms)

Steering axle LAP 55

This directly driven planetary steering axle – by a hydro or electric motor – was developed for airfield vehicles (GSE) and mining machines, as it offers maximum reliability at high load cycles.

Axle load of 20 t at 15 km/h, Hydraulic motor direct drive, Steering angle lock of up to 40°

Lenkachse LAP 55 für GSE - Neunkirchener Achsenfabrik

TECHNICAL SPECIFICATIONS

TRACTION CONTROL

Differential lock

BRAKE SYSTEM

Closed oil immersed disc brake system (turbo brake)
Closed oil immersed disc brake system (parking brake)
Closed oil immersed disc brake system (service brake)
Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)
Differential gear
Planetary gear drive (with/without brake)
Planetary gear drive (shiftable)

AXLE HOUSING

Axle housing (fixed)
Suspension (oscillated)
Suspension (pendulum arms)

Steering axle LAP 55

This special form of this size of steering axle is used in construction machines, for example in rail- road vehicles.

For rail-road vehicles, Axle load of 4 t at 40 km/h, For road and rail

Lenkachse LAP 55 für Baumaschinen - Neunkirchener Achsenfabrik

TECHNICAL SPECIFICATIONS

TRACTION CONTROL

Differential lock

BRAKE SYSTEM

Closed oil immersed disc brake system (turbo brake)
Closed oil immersed disc brake system (parking brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Differential gear
Planetary gear drive (with/without brake)

AXLE HOUSING

Axle housing (fixed)
Suspension (pendulum arms)

Steering axle LAP 55

Especially in vehicles for material handling, the axles are exposed to high wheel loads. The optimal scope for this planetary steering axle.

Axle load of 21 t at 25 km/h, High wheel loads, High steering forces

Lenkachse LAP 55 für Material Handling - Neunkirchener Achsenfabrik

TECHNICAL SPECIFICATIONS

TRACTION CONTROL

Differential lock

BRAKE SYSTEM

Closed oil immersed disc brake system (turbo brake)
Closed oil immersed disc brake system (parking brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Differential gear
Planetary gear drive (with/without brake)

AXLE HOUSING

Axle housing (fixed)
Suspension (pendulum arms)

Steering axle LAP 76

This planetary steering axle is particularly popular in agricultural and construction machines, as it is characterised by high wheel loads.

For swivelling wheel loaders, Axle load of 10 t at 40 km/h, High steering forces

Lenkachse LAP 76 - Neunkirchener Achsenfabrik

TECHNICAL SPECIFICATIONS

TRACTION CONTROL

Differential lock

BRAKE SYSTEM

Closed oil immersed disc brake system (turbo brake)
Closed oil immersed disc brake system (parking brake)
Closed oil immersed disc brake system (service brake)
Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Differential gear
Planetary gear drive (with/without brake)

AXLE HOUSING

Axle housing (fixed)
Suspension (pendulum arms)

Product brochure

NAF’s drive solutions for customised, modular steering axles

OUR STEERING AXLES

NAF offers steering axles and planetary steering axles for heavy-duty and commercial vehicles for use in agriculture, construction and forestry. With steering axles, the wheels can be moved specifically to enable cornering. On steering axles, the axle beam and steering knuckle are connected via steering pins with thrust bearings. In heavy commercial vehicles, trailing axles are used as non-driven axles to optimise load distribution.

For special installation space requirements, NAF has developed steering drive axles with integrated spur gears. Due to the higher range of gear ratios, a hydraulic or electric motor can also be flanged on directly.

STEERING AXLES WITH ADJUSTABLE TRACK WIDTH

NAF offers steering axles and planetary steering axles for harvesters that can be adjusted in width on the axle beam. The track width is adjusted via a telescoping mechanism in the axle beam. This allows different tyre sizes and widths to be used on the vehicle. This makes the machine more universally applicable and allows it to carry more traction and load even on soft soils, such as in the rice harvest. At NAF, these width-adjustable axles have the brand name “FlexTrac Axle®”.

E-DRIVE FOR STEERABLE AXLES

NAF axles can be driven via a drive shaft, as well as via a directly mounted hydro motor or electric motor.

spare parts supply

Thanks to a long-standing spare parts supply, NAF customers can obtain spare parts such as cylinders, thrust washers or bearings from NAF to keep the axles in their tractor units in good condition for a long time.
