Harbour Crane - NAF Neunkirchner Achsenfabrik

For your heavy duty playgrounds

Vehicle for material handling: Harbor crane

NAF technology Harbor crane

Rubber Tyre Gantry Crane - NAF Neunkirchner Achsenfabrik

For your heavy duty playgrounds

Vehicle for material handling: Rubber Tyre Gantry Crane

NAF technology Rubber Tyre Gantry Crane

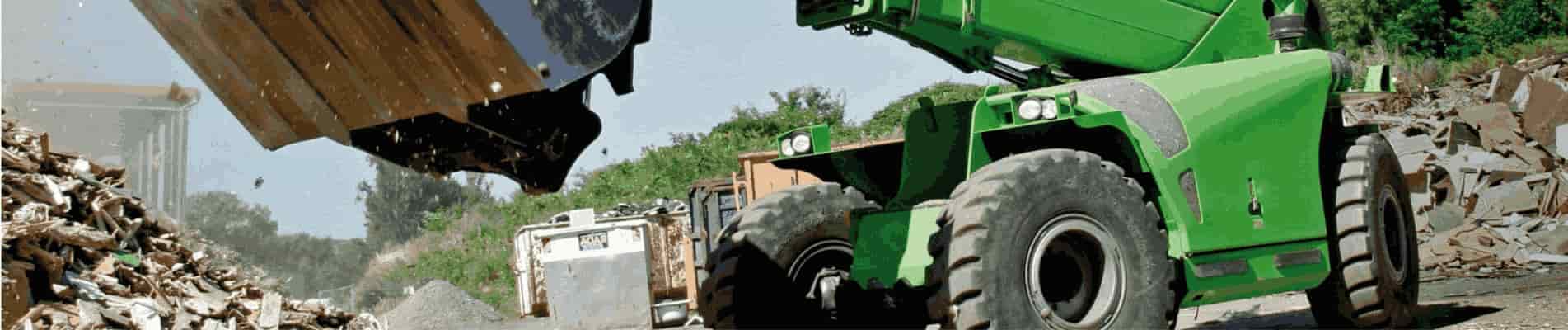

Tele Handler - NAF Neunkirchner Achsenfabrik

For your heavy duty playgrounds

Vehicle for material handling: Telehandler

NAF technology Telehandler

NAF axles
Rigid axles

NAF axles
Front and rear: Steering axles

.slider-section .owl-carousel {display:block;} .slider-section .owl-pagination, .slider-section .owl-control, .slider-section .box-wrapper .close-button, .slider-section .box-wrapper:before { display:none !important; } .slider-section .owl-carousel .slide {overflow:hidden;} .slider-section .box-wrapper {position:relative !important;} .slider-section .box-wrapper .box-content {margin: 25px auto !important;}

Vehicles for material handling

NAF contact person

For your heavy duty playgrounds

Till Kieser - NAF Neunkirchener Achsenfabrik

We are more than happy to develop individual drive solutions for you.

One of your NAF contacts

Till Kieser

Senior Sales & Business Development Manager

Your product inquiry

REQUEST NOW

section.contact-person .contact-data .download-area p {display:none!important;} section.contact-person {top:0 !important;} @media(min-width:1320px) { section.contact-person .desktop-opener {right:-50px !important;} section.contact-person .contact-data.closed {right:0 !important;} section.contact-person .contact-data .toggle-area {display:none !important;} } @media(max-width:1319px) { section.contact-person {display: initial !important;} section.contact-person .desktop-opener {display:none !important;} section.contact-person {position: relative !important;} section.contact-person .contact-data.closed { position: relative; top: initial !important; left: initial !important; right: initial !important; bottom: initial !important; width: 80%; max-width: 300px; margin: 0 auto; height: auto; margin-bottom: 50px; } section.contact-person .contact-data .toggle-area {display:none !important;} }

DualSync® Gearbox – VSZ 76

The two-motor DualSync® gearbox with CVT functionality is a true all-rounder and is used in forestry machines, agricultural machines, mining machines, vehicles for material handling, construction machines and vehicles for off-road heavy transport.

Getriebe VSZ 76 - Neunkirchener Achsenfabrik

Highlights

Dual Motor Hydrostatic Gearbox DualSync®
Power Shift/CVT functionality
Output torque 10500 Nm

TECHNICAL SPECIFICATIONS

Modular-minded VSZ 76

TRACTION CONTROL

All-wheel shutdown

BRAKE SYSTEM

Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shift on the go)

.acc-block .acc-box .content { font-size: 18pt; line-height: 26pt; opacity: 1 !important; visibility: visible !important; max-height: inherit !important; } .acc-block .acc-box .content-area { padding-bottom: 20px !important; padding-top: 20px !important; } .acc-block .acc-box .title::before { border-style: solid !important; border-width: 12px 12px 0 12px !important; border-color: #fff transparent transparent transparent !important; top: 10px !important; left: -10px !important; }

Steering axle LAP 55

Especially in vehicles for material handling, the axles are exposed to high wheel loads. The optimal scope for this steering axle.

Lenkachse LAP 55 für Material Handling - Neunkirchener Achsenfabrik

Highlights

Planetary steering axle

Axle load of 21 t at 25 km/h

High wheel loads

High steering forces

TECHNICAL SPECIFICATIONS

Modular-minded LAP 55

TRACTION CONTROL

Differential lock

BRAKE SYSTEM

Closed oil immersed disc brake system (turbo brake)
Closed oil immersed disc brake system (parking brake)
Closed oil immersed disc brake system (service brake)
Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)
Differential gear
Planetary gear drive (with/without brake)
Planetary gear drive (shiftable)

AXLE HOUSING

Axle housing (fixed)
Suspension (oscillated)
Suspension (pendulum arms)

Rigid axle SAP 34

The SAP 34 is designed for high axle loads of up to 26 tonnes and is ideal for use in vehicles for material handling, predominantly mobile harbor cranes.

Starrachse SAP 34 - NAF Neunkirchener Achsenfabrik

Highlights

Planetary rigid axle
Axle load of 26/42/68 t at 5 km/h
Hydraulic motor direct drive/electric drive
Optionally not driven

TECHNICAL SPECIFICATIONS

Modular-minded SAP 34

TRACTION CONTROL

Differential lock

BRAKE SYSTEM

Closed oil immersed disc brake system (parking brake)
Closed oil immersed disc brake system (service brake)
Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)
Differential gear
Planetary gear drive (with/without brake)

AXLE HOUSING

Axle housing (fixed)
Suspension (oscillated)
Suspension (pendulum arms)

Gearbox – VGZ 86

This two-motor gearbox with 12,000 Nm output torque is used in forestry machines, agricultural machines, mining machines, vehicles for material handling, construction machines and vehicles for off-road heavy transport.

Getriebe VGZ 86 - Neunkirchener Achsenfabrik

Highlights

Gearbox for 2 motors
Output torque 10500 Nm

TECHNICAL SPECIFICATIONS

Modular-minded VGZ 86

TRACTION CONTROL

All-wheel shutdown

BRAKE SYSTEM

Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)

Rigid axle SAP 75 – 02

This rigid axle with oscillating or fixed suspension was specially developed for vehicles for material handling (RTG’s) with a load capacity of 42 or 67 tonnes.

Starrachse SAP 75-2 - NAF Neunkirchener Achsenfabrik

Highlights

Planetary rigid axle
Axle load of 42 t at 5 km/h
Hydraulic motor direct drive/electric drive
Optionally not driven
Compact design with attached transfer case

TECHNICAL SPECIFICATIONS

Modular-minded SAP 75 – 02

TRACTION CONTROL

Differential lock

BRAKE SYSTEM

Closed oil immersed disc brake system (parking brake)
Closed oil immersed disc brake system (service brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)
Differential gear
Planetary gear drive (with/without brake)

AXLE HOUSING

Axle housing (fixed)
Suspension (oscillated)
Suspension (pendulum arms)
