Forage Harvester - NAF Neunkirchener Achsenfabrik

For your heavy duty playgrounds

Agricultural machine: Forage harvester

NAF technology Forage harvester

Combine Harvester - NAF Neunkirchener Achsenfabrik

For your heavy duty playgrounds

Agricultural machine: Combine harvester

NAF technology Combine harvester

Sprayer - NAF Neunkirchener Achsenfabrik

For your heavy duty playgrounds

Agricultural machine: Sprayer

NAF technology Sprayer

8-Rad Traktor - NAF Neunkirchener Achsenfabrik

For your heavy duty playgrounds

Agricultural machine: 8-wheel Tractor

NAF technology 8-wheel Tractor

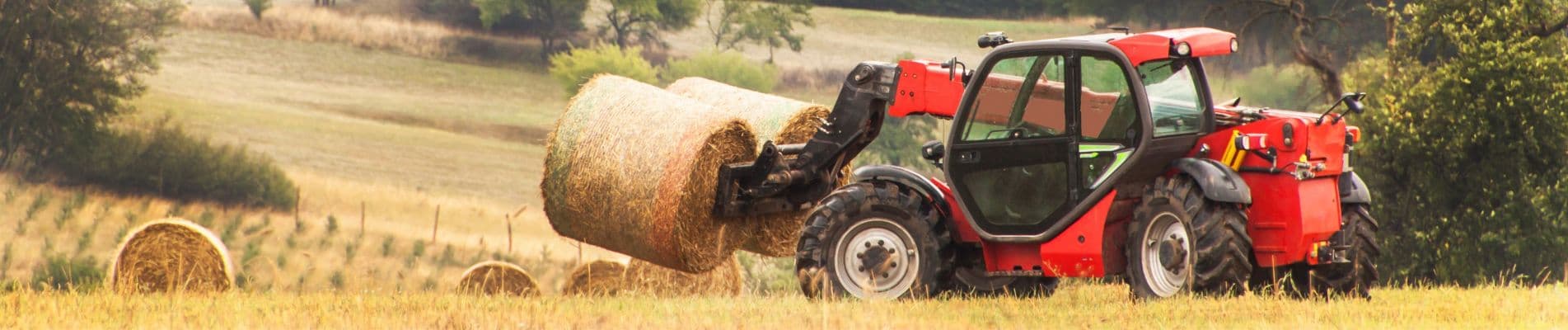

Tele Handler - NAF Neunkirchener Achsenfabrik

For your heavy duty playgrounds

Agricultural machine: Telehandler

NAF technology Telehandler

NAF axles
Rear: Steering axles

NAF axles
Front: Bogie axles
Rear: Steering axles

NAF axles
Front: Steering axles
Rear: Rigid axles

NAF axles
Front and rear: Bogie axles

NAF components
Front: Steering axles
Rear: Gearbox

.slider-section .owl-carousel {display:block;} .slider-section .owl-pagination, .slider-section .owl-control, .slider-section .box-wrapper .close-button, .slider-section .box-wrapper:before { display:none !important; } .slider-section .owl-carousel .slide {overflow:hidden;} .slider-section .box-wrapper {position:relative !important;} .slider-section .box-wrapper .box-content {margin: 25px auto !important;}

Agricultural machines

NAF contact person

For your heavy duty playgrounds

Sebastian Reck - NAF Neunkirchener Achsenfabrik

We are more than happy to develop individual drive solutions for you.

One of your NAF contacts

Sebastian Reck

Key Account Manager

Your product inquiry

REQUEST NOW

section.contact-person .contact-data .download-area p {display:none!important;} section.contact-person {top:0 !important;} @media(min-width:1320px) { section.contact-person .desktop-opener {right:-50px !important;} section.contact-person .contact-data.closed {right:0 !important;} section.contact-person .contact-data .toggle-area {display:none !important;} } @media(max-width:1319px) { section.contact-person {display: initial !important;} section.contact-person .desktop-opener {display:none !important;} section.contact-person {position: relative !important;} section.contact-person .contact-data.closed { position: relative; top: initial !important; left: initial !important; right: initial !important; bottom: initial !important; width: 80%; max-width: 300px; margin: 0 auto; height: auto; margin-bottom: 50px; } section.contact-person .contact-data .toggle-area {display:none !important;} }

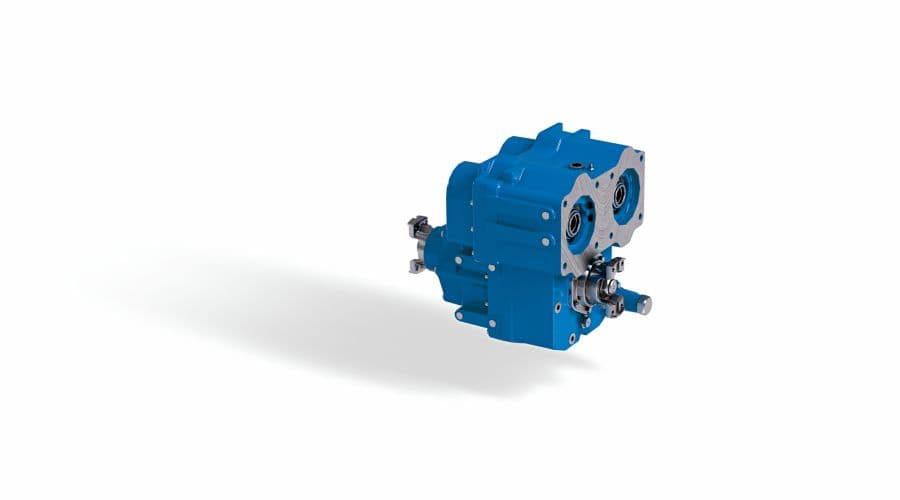

Gearbox – VGZ 86

This two-motor gearbox with 12,000 Nm output torque is used in forestry machines, agricultural machines, mining machines, vehicles for material handling, construction machines and vehicles for off-road heavy transport.

Getriebe VGZ 86 - Neunkirchener Achsenfabrik

Highlights

Gearbox for 2 motors
Output torque 10500 Nm

TECHNICAL SPECIFICATIONS

Modular-minded VGZ 86

TRACTION CONTROL

All-wheel shutdown

BRAKE SYSTEM

Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)

.acc-block .acc-box .content { font-size: 18pt; line-height: 26pt; opacity: 1 !important; visibility: visible !important; max-height: inherit !important; } .acc-block .acc-box .content-area { padding-bottom: 20px !important; padding-top: 20px !important; } .acc-block .acc-box .title::before { border-style: solid !important; border-width: 12px 12px 0 12px !important; border-color: #fff transparent transparent transparent !important; top: 10px !important; left: -10px !important; }

FlexTrac Axle® LAP 44

The FlexTrac Axle® is primarily used in agricultural machines. “FlexTrac” stands for a telescopic steering axle that can be used for different tyre widths, tyre sizes and applications.

Lenkachse LAP 44 Flextrac Axle- Neunkirchener Achsenfabrik

Highlights

Planetary steering axle

Axle load of 12 t at 40 km/h

Adjustable track width

Directly driven hydraulic motor

Integrated spur gearing

Compact design

TECHNICAL SPECIFICATIONS

Modular-minded FlexTrac® Axle LAP 44

TRACTION CONTROL

Differential lock

BRAKE SYSTEM

Closed oil immersed disc brake system (parking brake)
Closed oil immersed disc brake system (service brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)
Differential gear
Planetary gear drive (with/without brake)
Planetary gear drive (shiftable)

AXLE HOUSING

Axle housing (fixed)
Axle housing (adjustable)
Suspension (oscillated)
Suspension (pendulum arms)

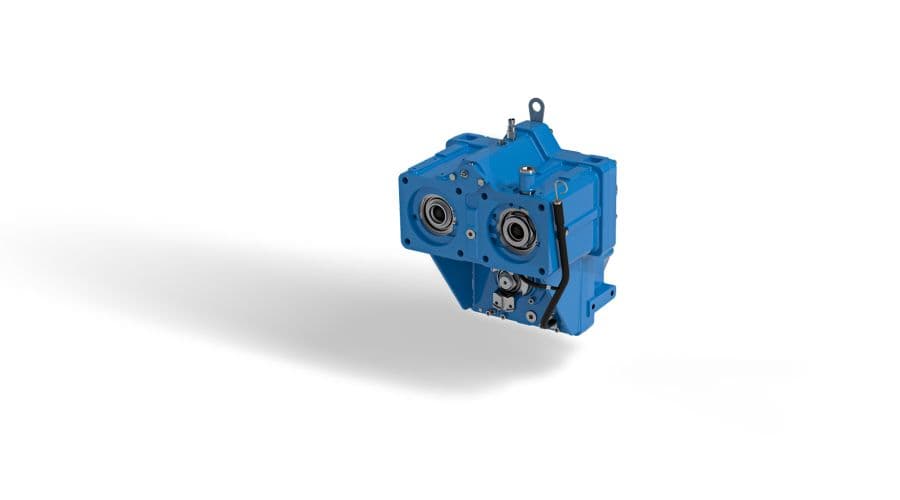

DualSync® Gearbox – VSZ 76

The two-motor DualSync® gearbox with CVT functionality is a true all-rounder and is used in forestry machines, agricultural machines, mining machines, vehicles for material handling, construction machines and vehicles for off-road heavy transport.

Getriebe VSZ 76 - Neunkirchener Achsenfabrik

Highlights

Dual Motor Hydrostatic Gearbox DualSync®
Power Shift/CVT functionality
Output torque 10500 Nm

TECHNICAL SPECIFICATIONS

Modular-minded VSZ 76

TRACTION CONTROL

All-wheel shutdown

BRAKE SYSTEM

Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shift on the go)

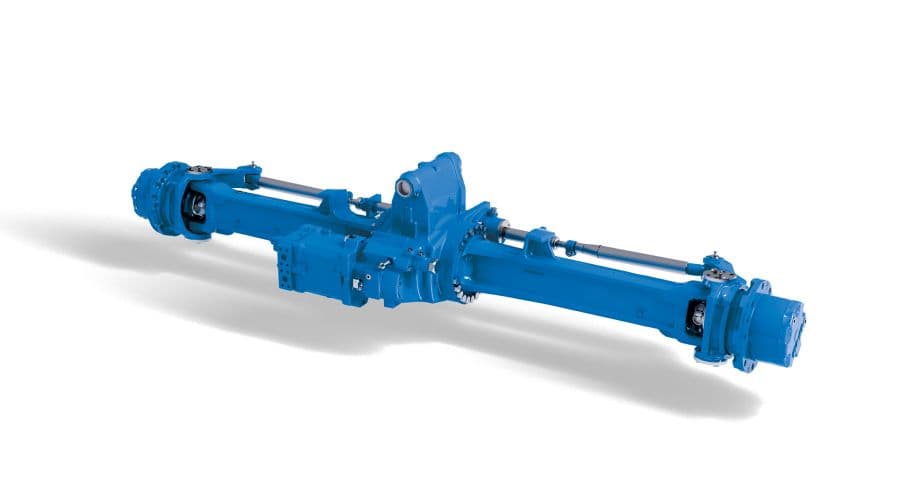

Steering axle LAP 44

Due to its compact construction, this axle is ideally designed for use in agricultural machines.

Lenkachse LAP 44 - Neunkirchener Achsenfabrik

Highlights

Planetary steering axle

Axle load of 8.5 t at 40 km/h

Direct hydraulic motor drive

Integrated spur gearing

Compact design

Integrated attached transfer case

TECHNICAL SPECIFICATIONS

Modular-minded LAP 44

TRACTION CONTROL

Differential lock
All-wheel shutdown

BRAKE SYSTEM

Closed oil immersed disc brake system (turbo brake)
Closed oil immersed disc brake system (parking brake)
Closed oil immersed disc brake system (service brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)
Differential gear
Planetary gear drive (with/without brake)

AXLE HOUSING

Axle housing (fixed)
Suspension (oscillated)
Suspension (pendulum arms)

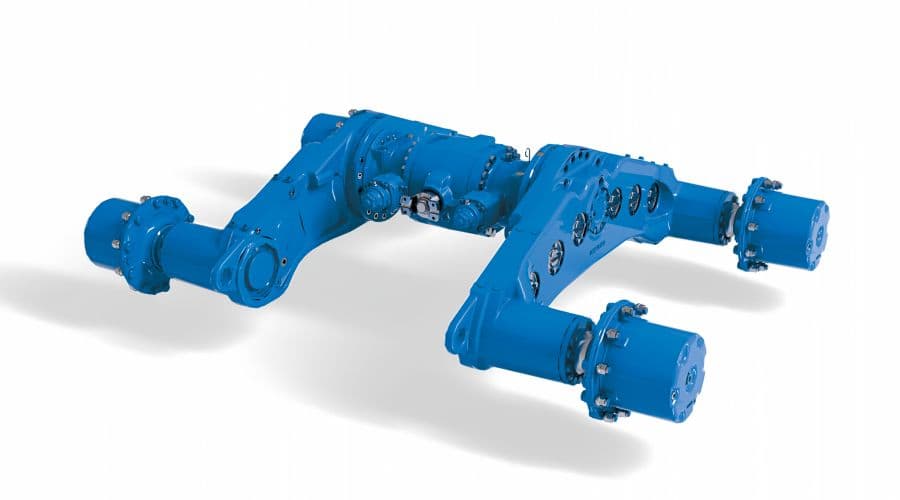

BOGIE AXLE TAP 54

This bogie axle in the classic design with extended ground clearance at the differential was specially developed for forestry machines and vehicles for heavy transport off-road and is now also used in agricultural machines.

Highlights

Planetary bogie axle

Axle load of up to 14 t at 40 km/h

Optimised ground clearance

Optional use of rigid/bogie axles thanks to standardised axle attachment for 6/8-wheel machines

TECHNICAL SPECIFICATIONS

Modular-minded TAP 54

TRACTION CONTROL

Differential lock
Permanent Bogie Balancing System (PBBS®)

BRAKE SYSTEM

Closed oil immersed disc brake system (turbo brake)
Closed oil immersed disc brake system (parking brake)
Closed oil immersed disc brake system (service brake)
Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)
Differential gear
Planetary gear drive (with/without brake)
Planetary gear drive (shiftable)

AXLE HOUSING

Axle housing (fixed)
Bogie housing
Bogie housing (flat, high speed)
Bogie housing (high, offroad)
