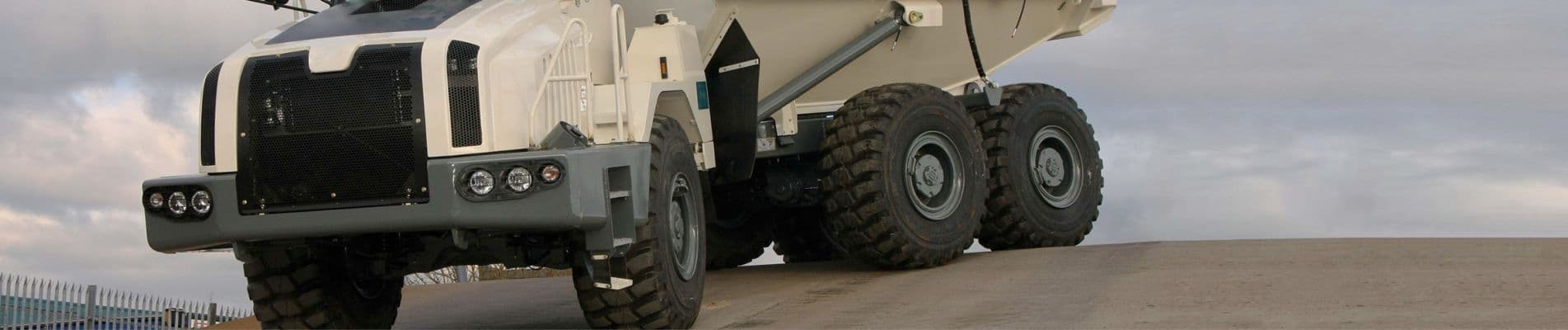

Mining Dump Truck - NAF Neunkirchener Achsenfabrik

For your heavy duty playgrounds

Mining machine: Dump Truck

NAF technology Dump Truck

Mining Motorgrader - NAF Neunkirchener Achsenfabrik

For your heavy duty playgrounds

Mining machine: Motorgrader

NAF technology Motorgrader

For your heavy duty playgrounds

Mining machine: Loader

NAF technology Loader

NAF axles
Front and rear: Rigid axles
or rear: Bogie axles

NAF axles
Front: Steering axles
Rear: Bogie axles

NAF axles
Front and rear: Rigid axles

.slider-section .owl-carousel {display:block;} .slider-section .owl-pagination, .slider-section .owl-control, .slider-section .box-wrapper .close-button, .slider-section .box-wrapper:before { display:none !important; } .slider-section .owl-carousel .slide {overflow:hidden;} .slider-section .box-wrapper {position:relative !important;} .slider-section .box-wrapper .box-content {margin: 25px auto !important;}

Mining machines

NAF contact person

For your
heavy duty playgrounds

Peter Illig - NAF Neunkirchener Achsenfabrik

We are more than happy to develop individual drive solutions for you.

One of your NAF contacts

Peter Illig

Head of Sales and Marketing

Your product inquiry

REQUEST NOW

section.contact-person .contact-data .download-area p {display:none!important;} section.contact-person {top:0 !important;} @media(min-width:1320px) { section.contact-person .desktop-opener {right:-50px !important;} section.contact-person .contact-data.closed {right:0 !important;} section.contact-person .contact-data .toggle-area {display:none !important;} } @media(max-width:1319px) { section.contact-person {display: initial !important;} section.contact-person .desktop-opener {display:none !important;} section.contact-person {position: relative !important;} section.contact-person .contact-data.closed { position: relative; top: initial !important; left: initial !important; right: initial !important; bottom: initial !important; width: 80%; max-width: 300px; margin: 0 auto; height: auto; margin-bottom: 50px; } section.contact-person .contact-data .toggle-area {display:none !important;} }

DualSync® Gearbox – VSZ 76

The two-motor DualSync® gearbox with CVT functionality is a true all-rounder and is used in forestry machines, agricultural machines, mining machines, vehicles for material handling, construction machines and vehicles for off-road heavy transport.

Getriebe VSZ 76 - Neunkirchener Achsenfabrik

Highlights

Dual Motor Hydrostatic Gearbox DualSync®
Power Shift/CVT functionality
Output torque 10500 Nm

TECHNICAL SPECIFICATIONS

Modular-minded VSZ 76

TRACTION CONTROL

All-wheel shutdown

BRAKE SYSTEM

Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shift on the go)

.acc-block .acc-box .content { font-size: 18pt; line-height: 26pt; opacity: 1 !important; visibility: visible !important; max-height: inherit !important; } .acc-block .acc-box .content-area { padding-bottom: 20px !important; padding-top: 20px !important; } .acc-block .acc-box .title::before { border-style: solid !important; border-width: 12px 12px 0 12px !important; border-color: #fff transparent transparent transparent !important; top: 10px !important; left: -10px !important; }

Gearbox – VGZ 86

This two-motor gearbox with 12,000 Nm output torque is used in forestry machines, agricultural machines, mining machines, vehicles for material handling, construction machines and vehicles for off-road heavy transport.

Getriebe VGZ 86 - Neunkirchener Achsenfabrik

Highlights

Gearbox for 2 motors
Output torque 10500 Nm

TECHNICAL SPECIFICATIONS

Modular-minded VGZ 86

TRACTION CONTROL

All-wheel shutdown

BRAKE SYSTEM

Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)

BOGIE AXLE TAP 89

This planetary bogie axle with flat axle beam was designed for heavy loads and high speeds and is therefore perfectly suited for use in construction machines as well as mining machines such as motor graders and dump trucks. At 60 km/h, it can handle an axle load of up to 50 tonnes.

Bogieachse TAP 89 - NAF Neunkirchener Achsenfabrik

Highlights

Planetary bogie axle

Axle load of 50 t at 60 km/h

For high speeds

TECHNICAL SPECIFICATIONS

Modular-minded TAP 89

TRACTION CONTROL

Differential lock
Permanent Bogie Balancing System (PBBS®)

BRAKE SYSTEM

Closed oil immersed disc brake system (turbo brake)
Closed oil immersed disc brake system (parking brake)
Closed oil immersed disc brake system (service brake)
Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)
Differential gear
Planetary gear drive (with/without brake)
Planetary gear drive (shiftable)

AXLE HOUSING

Axle housing (fixed)
Bogie housing
Bogie housing (flat, high speed)
Bogie housing (high, offroad)

Rigid axle SAP 55

Especially in vehicles for material handling and mining machines, the components are exposed to high wheel loads. The optimal areas of application for this rigid axle.

Starrachse SAP 55 - NAF Neunkirchener Achsenfabrik

Highlights

Planetary steering axle
Axle load of 14 t at 25 km/h
High wheel loads

TECHNICAL SPECIFICATIONS

Modular-minded SAP 55

TRACTION CONTROL

Differential lock

BRAKE SYSTEM

Closed oil immersed disc brake system (turbo brake)
Closed oil immersed disc brake system (service brake)
Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shifting at standstill)
Differential gear
Planetary gear drive (with/without brake)
Planetary gear drive (shiftable)

AXLE HOUSING

Axle housing (fixed)
Suspension (pendulum arms)

HydroSync® Gearbox – VG 35

This 2-speed transfer case with standstill shifting is designed for use in forestry machines, optionally designed as a on the go-shiftable HydroSync® for mining machines and airfield vehicles (GSE).

Getriebe VG 35 - Neunkirchener Achsenfabrik

Highlights

2-speed transfer case – optional: HydroSync®
CVT functionality
Output torque 5000 Nm

TECHNICAL SPECIFICATIONS

Modular-minded VG 35

TRACTION CONTROL

All-wheel shutdown

BRAKE SYSTEM

Parking brake (SAHR disc brake)

GEARBOX

Attached transfer case (hydrostatic/electric/mechanical)
Transfer case (shift on the go)
