GEARBOXES

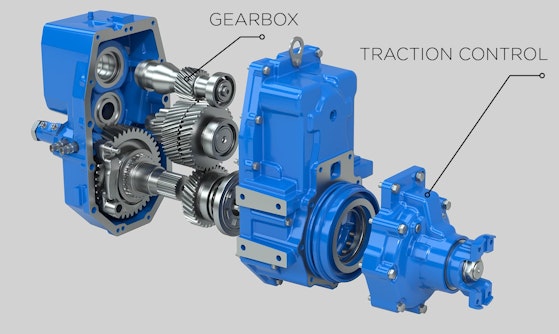

In combination with the axles, NAF also offers gearboxes to complete the drive train. In various sizes, output torques of up to 12,000 Nm can be achieved in order to supply even heavy working machines with the necessary drive power. As standard, the transfer cases are equipped with one working gear and one road gear. As an option, the transmissions can be equipped with a longitudinal differential, parking brake or all-wheel shut-off to minimise tyre wear.
Hydro motors as well as electric motors of all common manufacturers can be flanged to all gearbox sizes.

The DualSync® gearbox enables CVT functionality even for heavy-duty machines.
The HydroSync® gearbox can also be shifted while driving.

HydroSync® Gearbox – VG 35

This 2-speed transfer case with standstill shifting is designed for use in forestry machines, optionally designed as a on the go-shiftable HydroSync® for mining machines and airfield vehicles (GSE).

Getriebe VG 35 - Neunkirchener Achsenfabrik
Highlights
  • 2-speed transfer case – optional: HydroSync®
  • CVT functionality
  • Output torque 5000 Nm

TECHNICAL SPECIFICATIONS

Dummy

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF contact

Modular-minded VG 35

TRACTION CONTROL
  • All-wheel shutdown
BRAKE SYSTEM
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shift on the go)

Gearbox – VG 75

This transfer case with increased output torque is used in forestry and construction machines. Also available in this size as HydroSync®.

Getriebe VG 75 - Neunkirchener Achsenfabrik
Highlights
  • 2-speed transfer case
  • Output torque 8000 Nm

TECHNICAL SPECIFICATIONS

Dummy

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF contact

Modular-minded VG 75

TRACTION CONTROL
  • All-wheel shutdown
BRAKE SYSTEM
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)

DualSync® Gearbox – VSZ 76

The two-motor DualSync® gearbox with CVT functionality is a true all-rounder and is used in forestry machines, agricultural machines, mining machines, vehicles for material handling, construction machines and vehicles for off-road heavy transport.

Getriebe VSZ 76 - Neunkirchener Achsenfabrik
Highlights
  • Dual Motor Hydrostatic Gearbox DualSync®
  • Power Shift/CVT functionality
  • Output torque 10500 Nm

TECHNICAL SPECIFICATIONS

Dummy

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF contact

Modular-minded VSZ 76

TRACTION CONTROL
  • All-wheel shutdown
BRAKE SYSTEM
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shift on the go)

Gearbox – VGZ 86

Getriebe VGZ 86 - Neunkirchener Achsenfabrik
Highlights
  • Gearbox for 2 motors
  • Output torque 10500 Nm

TECHNICAL SPECIFICATIONS

Dummy

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF contact

Modular-minded VGZ 86

TRACTION CONTROL
  • All-wheel shutdown
BRAKE SYSTEM
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)

Gearbox – VGD 35

This transfer case with centre differential lock is mainly used in forestry and agricultural machines.

Getriebe VGD 35 - Neunkirchener Achsenfabrik
Highlights
  • Interaxle differential lock
  • Output torque 5000 Nm

TECHNICAL SPECIFICATIONS

Dummy

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF contact

Modular-minded VGD 35

TRACTION CONTROL
  • Differential lock
  • All-wheel shutdown
BRAKE SYSTEM
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)

Gearbox – VG 250

Getriebe VG 250 - Neunkirchener Achsenfabrik
Highlights
  • 2-speed transfer case
  • Output torque 3000 Nm

TECHNICAL SPECIFICATIONS

Dummy

For your heavy duty Playgrounds

We are more than happy to develop individual drive solutions for you.

NAF contact

Modular-minded VG 250

BRAKE SYSTEM
  • Closed oil immersed disc brake system (parking brake)
  • Parking brake (SAHR disc brake)
GEARBOX
  • Attached transfer case (hydrostatic/electric/mechanical)
  • Transfer case (shifting at standstill)

Product Brochure

NAF’s drive solutions for customised, modular gearboxes
